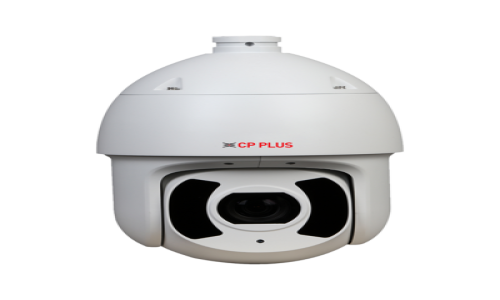

CP UNP F4521L30 DPQ 2MP 45x Full HD Network IR PTZ Camera– 300 Mtr
꧁ Digital Diary ༒Largest Writing Community༒꧂
Image Advertisment
Product / Service Description
| Image Sensor | 1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeter) |
| Effective Pixels | 1920(H) x 1080(V) |
| Minimum Illumination | Color: 0.005 [email protected], B/W: 0.0005 [email protected], 0 [email protected] (IR on) |
| Focus Control | Auto/Semi-Auto/Manual |
| RAM | 512 MB |
| ROM | 256 MB |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Lens | 3.95 mm–177.75 mm |
| Max. Aperture | F1.6–F4.95 |
| Angle of view | H: 65.7°–1.9°, V: 39.4°–1.1°, D: 73.1°–2.1° |
| Close Focus Distance | 0.1 Mtr. – 1 Mtr. |
| Iris Control | Auto/Manual |
| DORI Distance | Detect: 2451.7 Mtr., Observe:972.9 Mtr., Recognize: 490.3 Mtr., Identify: 245.2 Mtr. |
| Electronic Shutter | 1/1 s–1/30,000 s |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| S/N Ratio | ≥ 55 dB |
| Optical Zoom | 45× |
| Image Rotation | 180° |
| Pan & Tilt Range | Pan: 0° to 360° endless, Tilt: –20° to +90°, auto flip 180° |
| Power-off Memory | Support |
| Manual Speed | Pan: 0.1° ~260° /s, Tilt: 0.1° ~120° /s |
| Preset Speed | Pan: 300°/s, Tilt: 200°/s |
| Image Stabilization | Electronic (EIS) |
| Privacy Masking | Up to 24 Areas can be set, with up to 8 areas in the same view |
| Special Features | Up to 300 Presets, 5 Pattern, 8 (up to 32 presets per tour) Tour, 5 Scan |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Defog | Electronic |
| IR Distance | 300 Mtr. |
| IR Number | 6 (IR) |
| IR Control | Zoom Prio, Manual, Smart IR, Off |
| Day/Night | Auto (ICR)/Color/B/W |
| Gain Control | Auto/Manual |
| Video Format | PAL/NTSC |
| OSD | Camera title, Date & Time |
| Video Compression | Instastream, H.265, H.264+, H.264H, H.264B, H.264, MJPEG(Sub Stream) |
| Resolution | 2MP (1920 × 1080), 1MP (1280 × 720), D1 (704 × 576), CIF (352 × 288) |
| Frame Rate | Main stream: 2MP/1MP/D1 @(1–25/30 fps) sub stream 1: 2MP/1MP/D1 @(1–25/30 fps) Sub stream 2:D1/CIF @(1–25/30 fps) Sub stream 3: D1/CIF @(1–25/30 fps) |
| Stream Capability | H.265 Quad Stream |
| Bit Rate | H264: 64 kbps–8192 kbps, H265: 25 kbps–6400 kbps |
| Bit Rate Control | CBR/VBR |
| Motion Detection | Support |
| ROI | Support |
| Noise Reduction | 2D/3D DNR |
| Two-way Talk | Yes |
| Audio In | 1 channel |
| Audio Out | 1 channel |
| Audio Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1 |
| Alarm I/O | 7/2 channel In/Out |
| Alarm Event | Motion/Tampering detection, audio detection, network disconnection detection, IP conflict detection, memory card state detection, memory space detection |
| User/Host | 20 (total bandwidth: 64 Mbps) |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, ARP, RTSPS, SMTP, SFTP, DHCP, DNS, UPnP, NTP, Multicast, NFS, PPPoE, SNMP V1/V2/V3, ICMP,IGMP, ONVIF (Profile S, Profile G, Profile T), Unicast, Multicast |
| Cyber Security | AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot. |
| Storage | SFTP, NAS, Micro SD card (support max. 512 GB) |
| Browser | Microsoft Edge and Chrome |
| Operating Temperature | –40 °C to +70 °C |
| Operating Humidity | ≤ 95% RH, Non condensing |
| Weatherproof Standard | IP67, IK10, TVS 8000V lightning proof, surge protection, voltage transient protection |
| Power Source | 24 VDC, 2.5 A ± 25% PoE+ (802.3at) |
| Power Consumption | 24 VDC, 2.5 A ± 25%: Basic: 13 W, Max: 25 W (illuminator + PTZ) PoE+ (802.3at): Basic: 13 W, Max: 25 W (illuminator + PTZ) |
| Casing | Metal |
| Dimension | 337.4mm × 209mm |
| Weight | 5.9 kg |
